The Shop Floor, in Pictures

Welding, rolling, machining, testing, dispatch and erection — documented at every stage.

Nagpure Engineering workshop with 3 MT EOT crane and fabrication bays — Workshop Floor

Structural steel fabrication in ISMB, ISMC and angle sections — Structural Fabrication

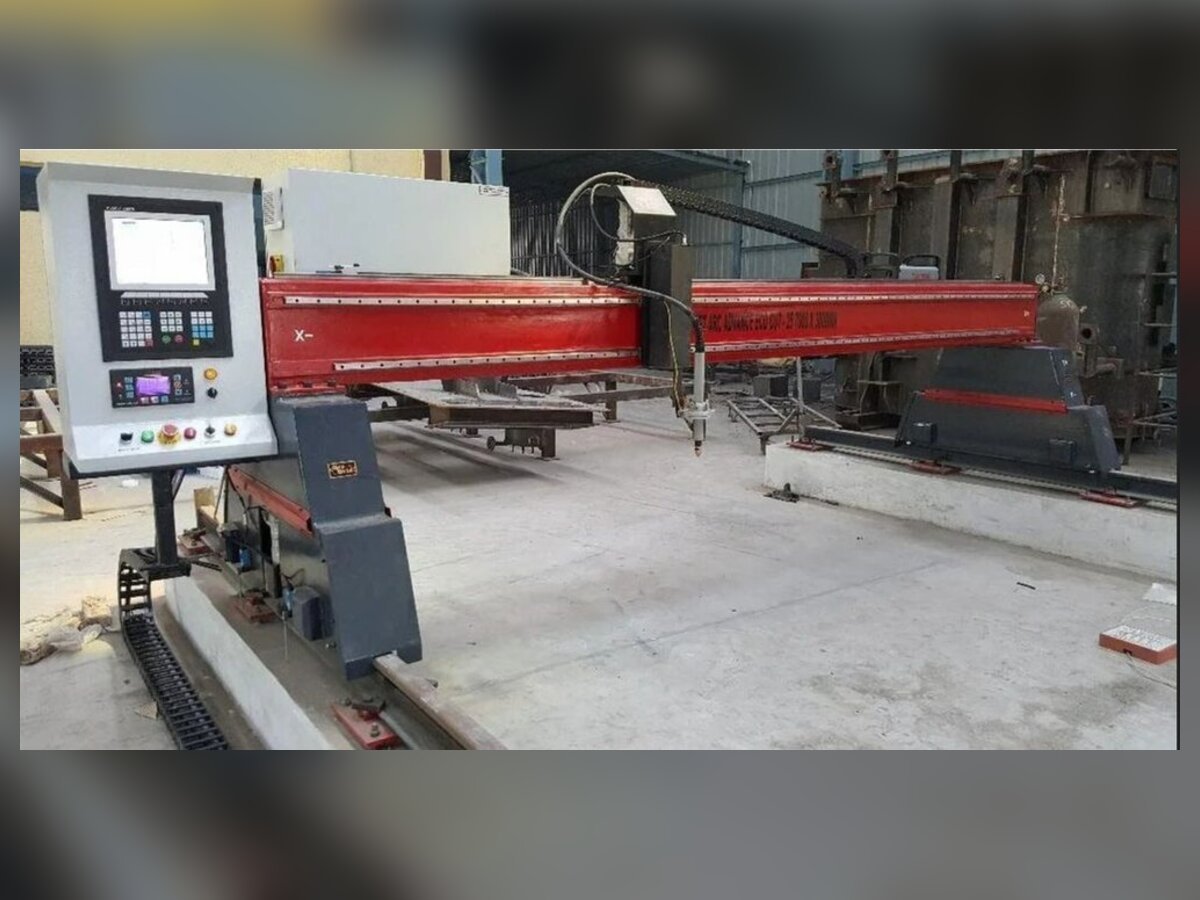

CNC plasma cutting machine profiling steel plate — CNC Plasma Profile Cutting

Heavy duty plate rolling and bending machine in the workshop — Plate Rolling & Bending

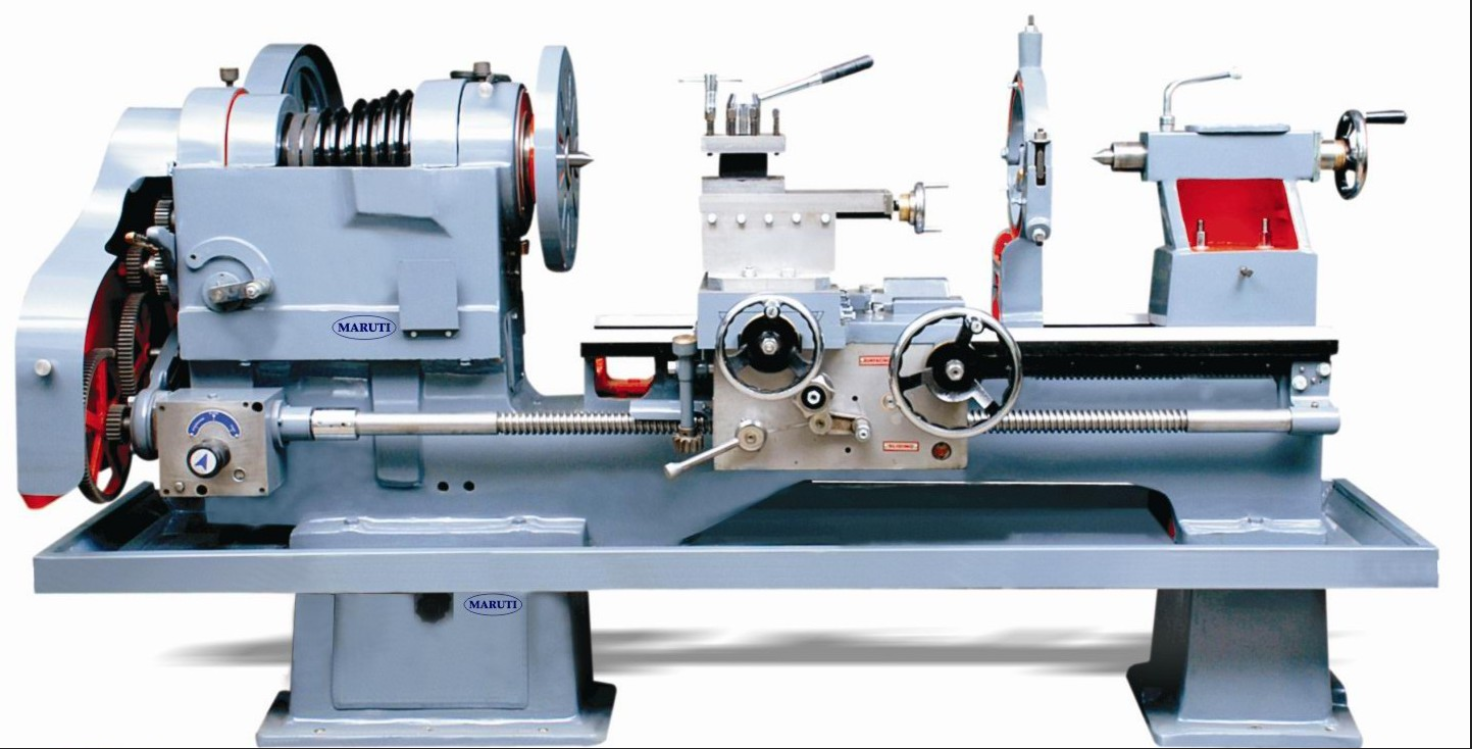

Machining bay with lathe and radial drilling capacity — Machining Bay

Job work fabrication in stainless steel, mild steel — Job Work — SS, MS

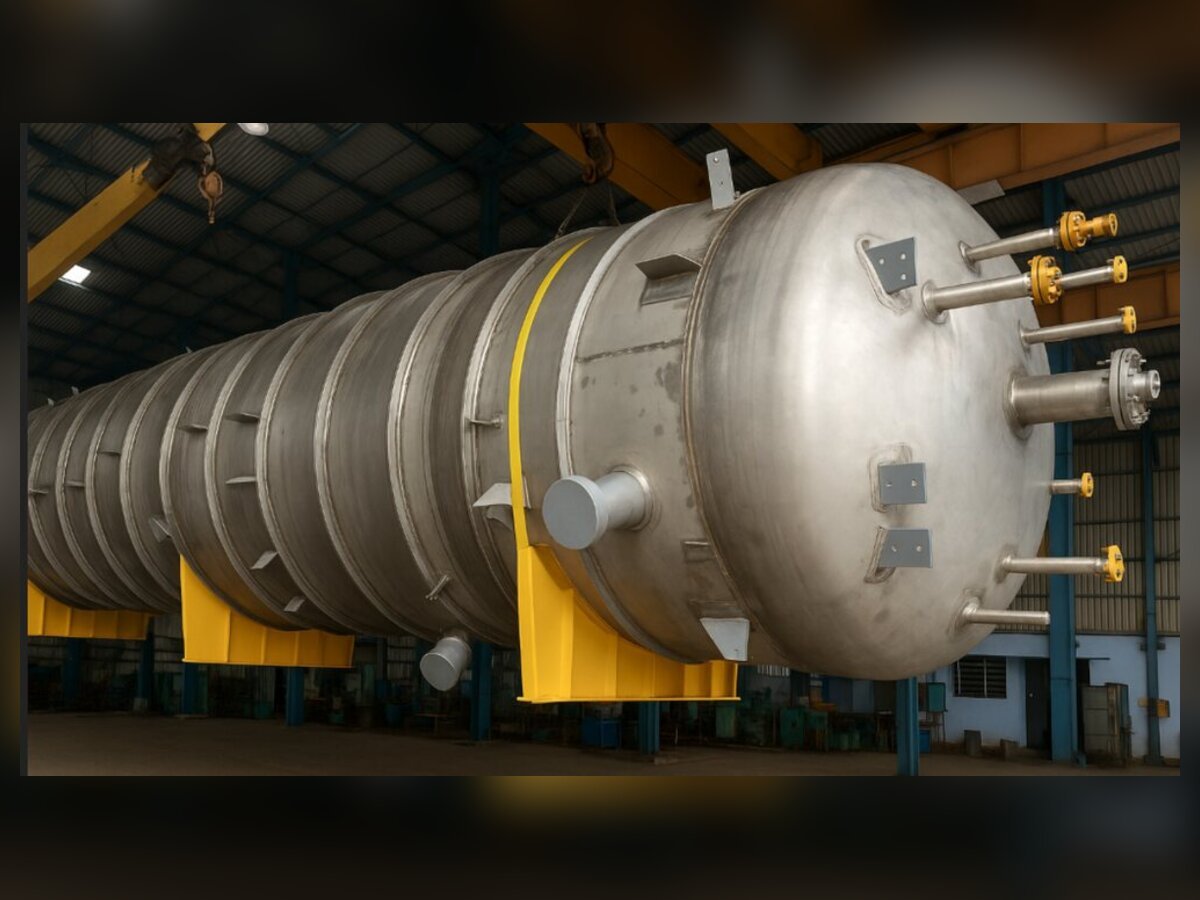

Large fabricated pressure vessel with dished ends — Pressure Vessel

Bank of stainless steel reaction vessels with agitator drives — Reaction Vessels

Reactor with half-pipe limpet coil for high pressure heat transfer — Reactor with Limpet Coil

Jacketed chemical reactor with bolted cover and nozzle schedule — Chemical Reactor

Tall distillation columns with external attachments and platforms — Distillation Column

Horizontal compressed air receiver vessels on saddle supports — Air Receiver

Bulk storage tanks with dished ends in finish paint — Storage Tanks

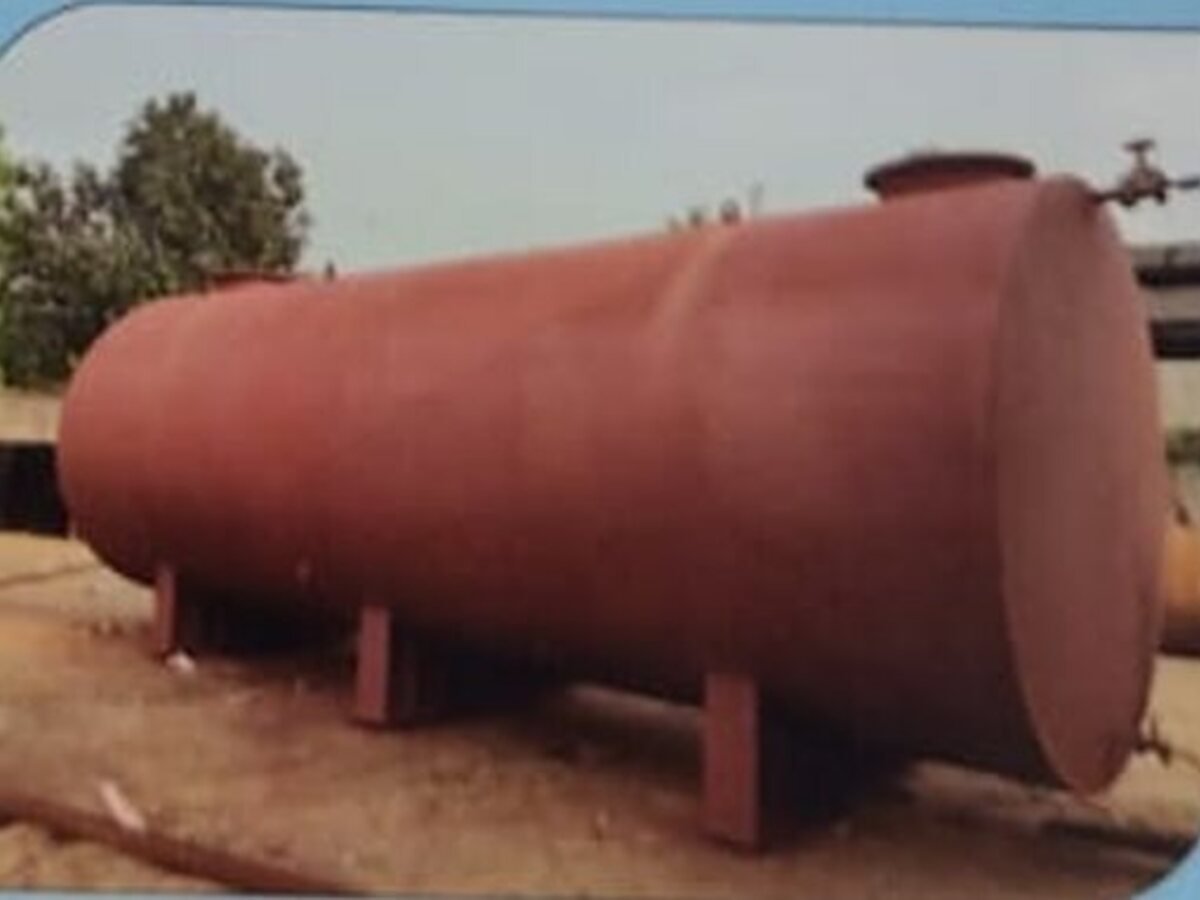

Horizontal SS and MS tank with dished ends on saddles — SS / MS Horizontal Tank

Circular clarifier mechanism with rake arms and centre drive — Clarifier Mechanism

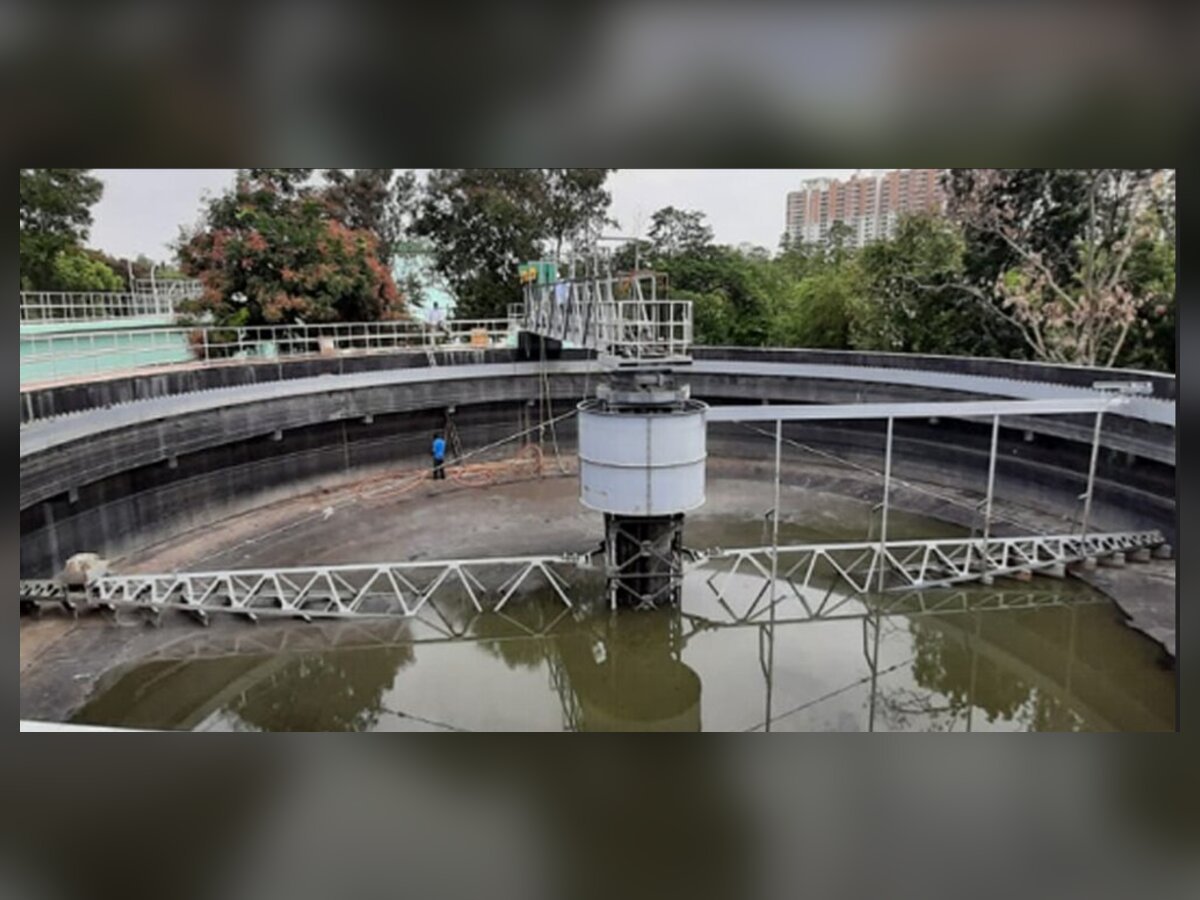

Complete circular clarifier with bridge and drive in operation — Clarifiers

Stainless steel U-trough ribbon blender with double helical ribbon — Ribbon Blender

U-trough screw conveyors with geared motor drive ends — Screw Conveyor

Bucket elevator with head, casing and boot section — Bucket Elevator

Grain storage silos with conveying gantry and access ladders — Storage Silo

Pulse jet bag filter dust collector with hopper — Bag Filter / Dust Collector

Cyclone separator mounted on fabricated support structure — Cyclone Separator

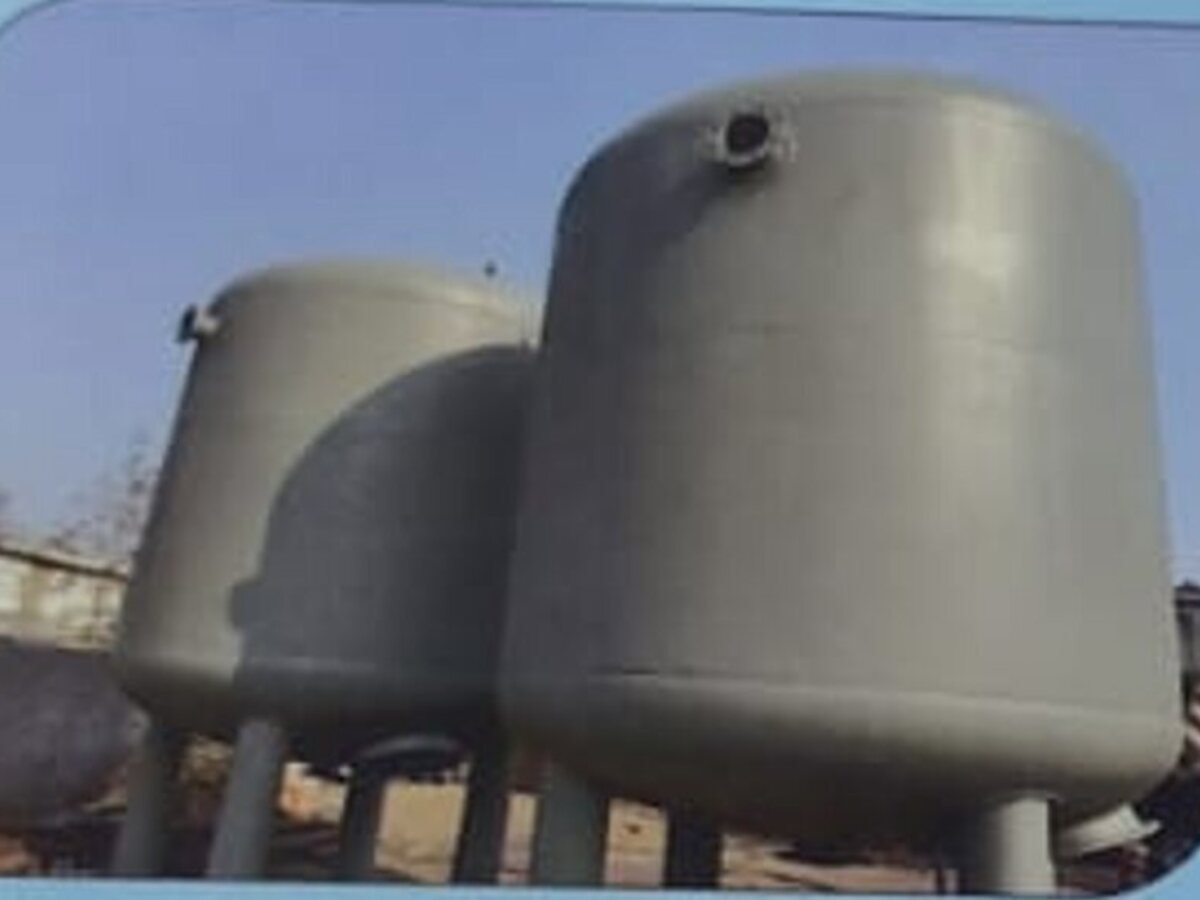

Pressure sand filters with frontal piping and valve assembly — Sand & Media Filters

Activated carbon filter vessels in the yard ready for dispatch — Activated Carbon Filter

Factory built packaged sewage treatment plant — STP Package

Material handling system with conveyors, hoppers and structure — Material Handling System

Hydrostatic test record with tag number chalked on vessel shell — Hydro Test Record

Hydrostatic pressure testing of a fabricated vessel — Hydrostatic Testing

Technician measuring a fabricated member with a tape for dimensional check — Dimensional Check

Pre-engineered building steel members loaded on trailer for dispatch — PEB Structure Dispatch

Air receiver vessel loaded on a truck for delivery — Air Receiver Dispatch

Large vessel being erected and aligned at site with a crane — Vessel Erection

Large section ducting erected onto pipe racks at site — Ducting Erection

Steel chimney and process piping fabrication and erection at site — Chimney & Piping

Pipeline laying and tie-in work at site — Pipe Line Work

Flare stack with tip section and access platforms erected on site — Flare Stack
